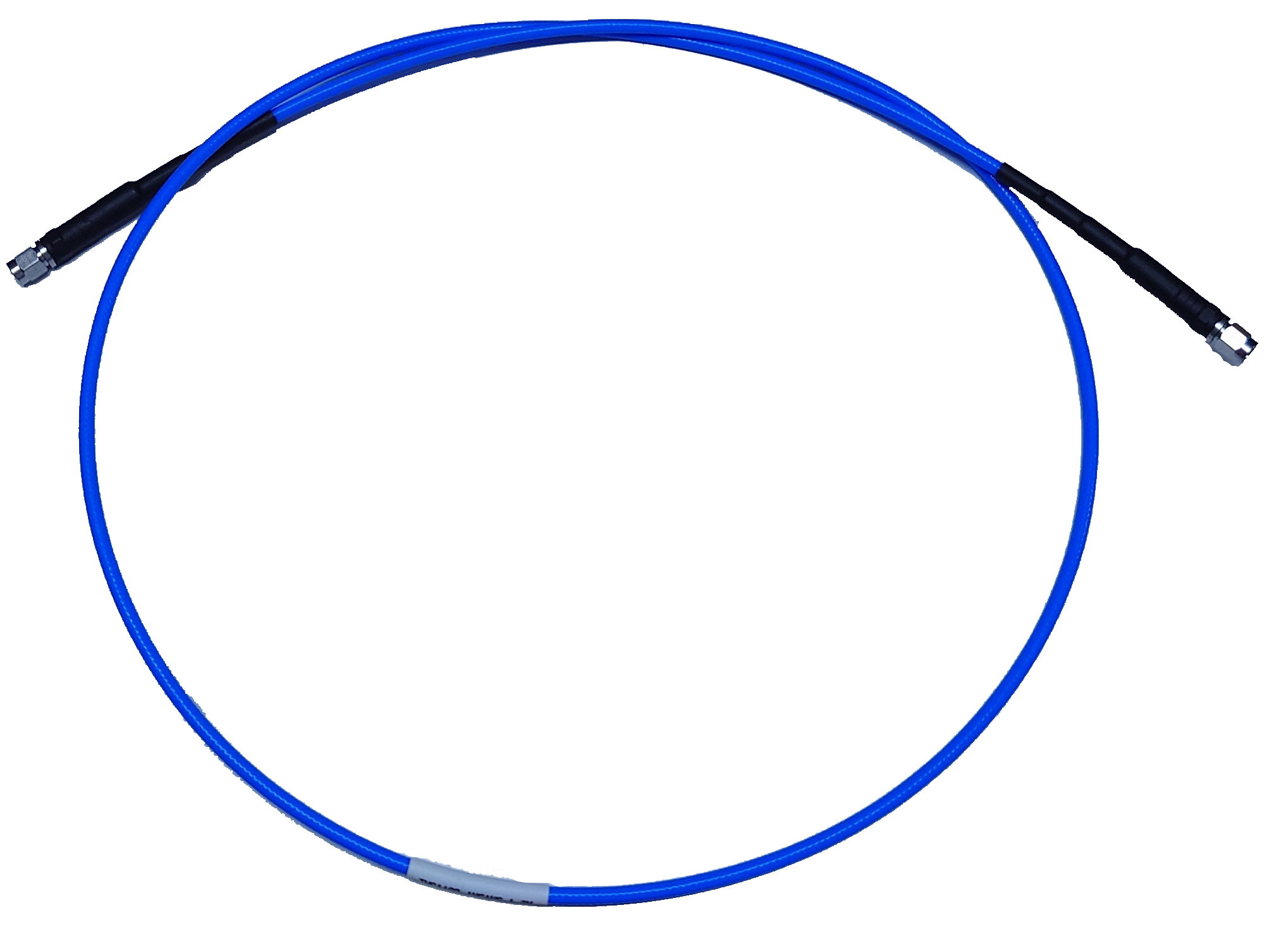

TMCA402


















This is a flexible cable with an SMAconnector or an N connector. The connectorshape and cable length can be customized.


























Specifications










Connector
SMA (M) – SMA (M)




Frequency
DC to 18GHz




V.S.W.R
1.3Max




Loss
-2.6dB Max (at 1m)




Cable color
Blue




Cable Length
4.3ｍｍ

















Standard length and model number










0.5m
TMCA402-AMSAMS-005




1.0m
TMCA402-AMSAMS-010




1.5m
TMCA402-AMSAMS-015




2.0m
TMCA402-AMSAMS-020

























Low loss cable for measurement


















A Low-Loss flexible cable with a 2.92 mm connector that is ideal for 5G measurements. The Low-Loss cable is adopted, and it corresponds to 43GHz so that the frequency band used in 5G can be covered. In addition to the standard four types of lengths, customized lengths are also manufactured.


Specifications






Connector
2.92mm(M) – 2.92mm(M)




Frequency
DC ～ 43GHz (43.5GHz)




Impedance
50Ω nominal




V.S.W.R
1.4 max




Loss
-3.3dB min (at 1m)




Cable color
Blue










Standard length and model number






0.5m
FC-1801-005




1.0m
FC-1801-010




1.5m
FC-1801-015




2.0m
FC-1801-020


















Characteristic




MODEL：FC-1801-010 Length　1m


















Extra fine cable for internal wiring


















It is an ultra-thin flexible cable with a 2.92 mm connector for internal wiring of devices compatible with 5G. It is cable adopted in our shield box, and it is RF cable which is thin and is easy to wire easily We now have. Two types of lengths are available.


Specifications






Connector
2.92mm(M) – 2.92mm(M)




Frequency
DC ～ 43GHz (43.5GHz)




Impedance
50Ω nominal




V.S.W.R
1.4 max




Loss
-5.3dB min (at 1m)




Cable color
Blue




Cable diameter
3.8mm










Standard length and model number






0.5m
FC-1802-005




1.0m
FC-1802-010


















Characteristic




MODEL：FC-1802-010 　Length　1m

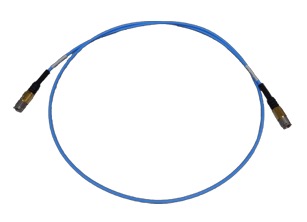

Phase stable Ultrafine Cable(FC-1090 Series)


















Phase stable ultra thin cable with SMAconnector. Since it is phase stable and thin,it is suitable for internal wiring ofequipment. In addition to the standard 4types of length, we can make customizedlength.


























Specifications










Connector
SMA(M) – SMA(M)




Frequency
DC to 26.5GHz




Impedance
Max50Ω nominal




V.S.W.R
1.4 max




Loss
-4.1dB Max (at 1m 26.5GHz)




phase
±8deg Max




amplitude
±0.15dB




Cable color
Blue




Cable Diameter
2.5mm

















Standard length and model number










0.5m
FC-1090-005




1.0m
FC-1090-010




1.5m
FC-1090-015




2.0m
FC-1090-020

























Phase stable Ultrafine Cable(FC-1890 Series)


















Phase stable ultra thin cable with 2.92 mmconnector. Phase stable up to 43.5 GHz.Thin, suitable for internal wiring ofequipment. In addition to the standard 4types of length, we can make customized length.


























Specifications










Connector
2.92mm(M)ー2.92mm(M)




Frequency
DC to 43.5GHz




Impedance
Max50Ω nominal




V.S.W.R
1.4 Max




Loss
-5.1dB Max (at 1m 40GHz)




phase
±8deg Max




amplitude
±0.15dB




Cable color
Blue




Cable Diameter
2.5mm

















Standard length and model number










0.5m
FC-1890-005




1.0m
FC-1890-010




1.5m
FC-1890-015




2.0m
FC-1890-020

























Low loss Cable for measurement(FC-1603 Series)


















Low loss flexible cable with 1.85 mmconnector. Low loss and flexible cablesare used to support up to 67 GHz. Inaddition to the four standard lengths, youcan also create customized lengths.


























Specifications










Connector
1.85mm(M) – 1.85mm(M)




Frequency
DC to 67GHz




V.S.W.R
1.4 Max




Loss
-7dB Max (at 1m 67GHz)




Cable color
yellow




Cable Diameter
6.2mm

















Standard length and model number










0.5m
FC-1603-005




1.0m
FC-1603-010




1.5m
FC-1603-015




2.0m
FC-1603-020

























Ultrafine Cable for internal wiring(FC-1602 Series)


















Super fine flexible cable with 1.85 mm connector for internalwiring of equipment up to 67 GHz. Suitable for wiring insideequipment, this thin, soft RF cable is easy to wire. Available in 2lengths.


























Specifications










Connector
1.85mm(M) – 1.85mm(M)




Frequency
DC to 67GHz




V.S.W.R
1.5 Max




Loss
-13dB Max (at 1m 67GHz)




Cable color
Blue




Cable Diameter
1.5mm

















Standard length and model number










0.5m
FC-1602-005




1.0m
FC-1602-010

























Ultrafine Cable for internal wiring(FC-1102 Series)


















Super fine flexible cable with 1.00 mm connector forinternal wiring of equipment up to 110 GHz. Suitablefor wiring inside equipment, this thin, soft RF cable iseasy to wire. Available in 2 lengths.


























Specifications










Connector
1.00mm(M) – 1.00mm(M)




Frequency
DC to 110GHz




V.S.W.R
1.5Max




Loss
-20dB Max (at 1m 100GHz)




Cable color
Blue




Cable Diameter
1.5mm

















Standard length and model number










0.5m
FC-1102-005




1.0m
FC-1102-010

























Millimeter wave Multirf Cable(FC-4302)


















A 30 GHz multi connector cablethat bundles 4 FC 1802 cables.The 4 core RF connector can beattached and detachedsimultaneously, which can beexpected to save labor andimprove reliability when connecting MIMO RF connectorssuch as simple relay devices.Cable length can be any length.


















































Specifications










Connector
Multi – 2.92mm50Ω nominal1.5




Frequency
DC to 30GHz(43.5GHz)




Impedance
50Ω nominal




V.S.W.R
1.5
