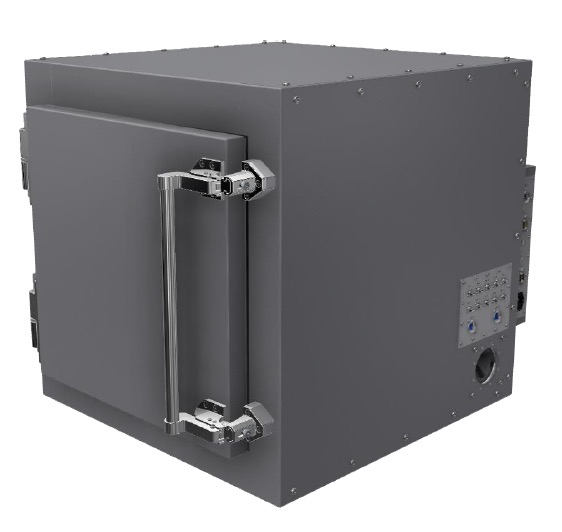

WM1019-04227
A multi-purpose medium-sized shield box with internal effective dimensions of 500 mm (W) x 500 mm (H) x 500 mm (D). It can be used for measurement of wireless communication terminals such as mobile terminals, various modules, and relay devices.Equipped with abundant interfaces for coupling with the inside of the box, in addition to RF connector (2.92mm, SMA), DSUB9Pin, USB, LAN, AC, VGA is also installed to support measurement of various devices. It is also equipped with a through tube, which allows you to directly pull in cables such as optical cables and high-speed USB.The standard model has a frequency of 800MHz to 43.5GHz and a shield attenuation of 60dB or more.
Specifications
| External dimensions | 600（H）× 600（W）× 600（D）mm （excluding protrusions） |
| Internal effective dimension | 500(H) × 500（W） × 500（D）mm |
| Internal table dimensions | 400 × 400 mm |
| Through tube size | Φ50mm×1 |
| Shield attenuation | 60dB以上（800MHz～43.5GHz ） |
| Standard connector | SMA or 2.92 connector ×10 USB3.0 ×2 / USB2.0 ×2 / DSUB9Pin ×3 LAN × 1 / VGA × 1 / AC100V ×1 |

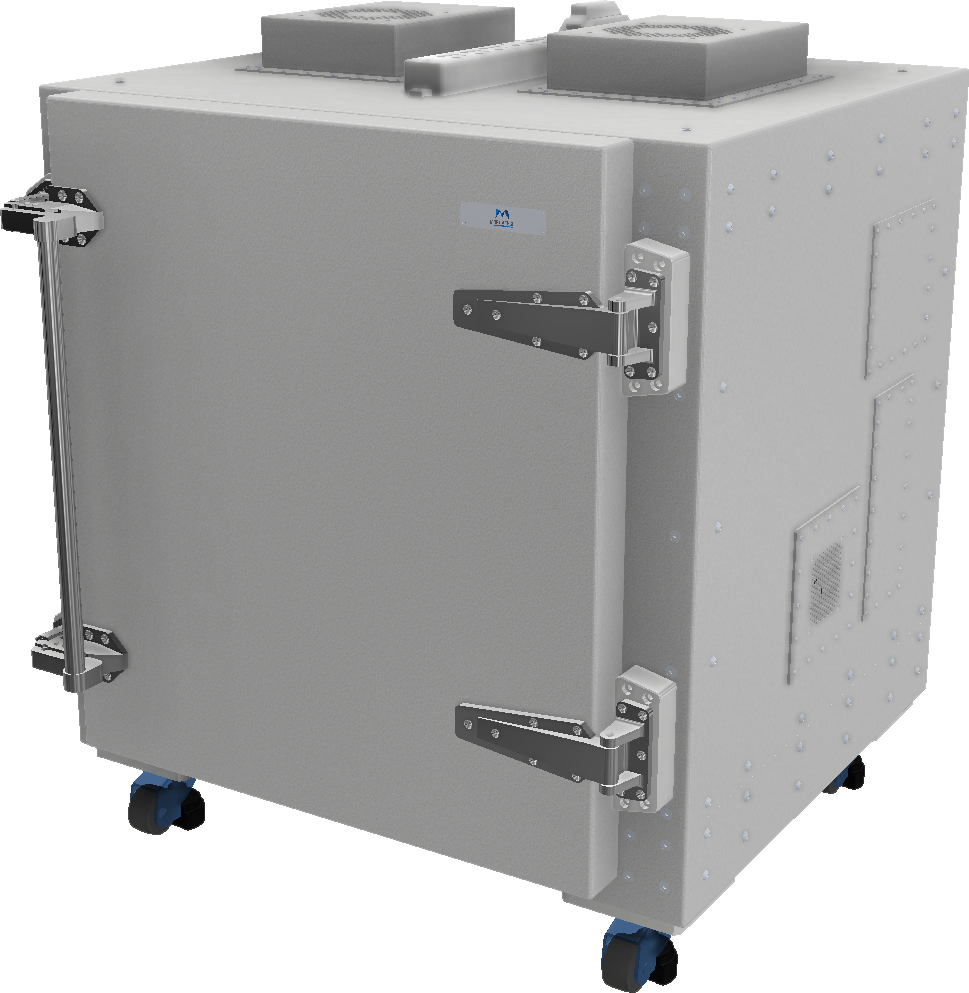

FS-2102
A medium-sized shield box with a shield characteristic of 60 dB or more from 600 MHz to 43.5 GHz. Supports a wide range of small base stations, personal computers, etc. It is possible to suppress the rise in the temperature inside the refrigerator by installing two fans. With the optional dedicated rack, the FS-2102 can be stored in two upper and lower stages, and various types of base stations can be stored in the FS-2102 and installed compactly.
Specifications
| External dimensions | 833（H）×700（W）×600（D）mm （excluding protrusions) |
| Shield attenuation | 60dB以上（600MHz～43.5GHz ） |
| Standard connector | SMA or 2.92mm 16 in total. |
| Others | 冷却ファン2基搭載 |
