5G Solution /Various shield box
5G 解决方案/ 各类屏蔽箱



Shield box for 5G device evaluation(FA-1901)
5G设备测评用屏蔽箱(FA-1901)

A chamber (large shield box) that can accommodate 5G base stations. By combining with our antenna coupler, so it is realized in a compact size.

In addition to base station tests, it is possible to perform quality tests between actual base stations and terminals by combining with a shield box for terminals.

The warning will be displayed when waves inside of the box are emitted by combing with the FPS-290 wave warning device which is used in a shield box for 28GHz band to prevent inadvertent exposure due to forget to close the lid carelessly.

This product can be customized according to the size of the base station to be accommodated.

可容纳5G基站的大型屏蔽箱。通过与我公司的天线耦合器的组合,可实现尺寸的小型化。

除基站试验外,也可与移动终端用屏蔽箱组合使用,实现真实基站和移动终端的通信品质试验。

通过与28GHz频带屏蔽箱用电磁波警告装置的结合,在内部有28GHz带的电磁波发射时,会进行警告显示,从而避免不经意间因盖未合上而致使人体暴露在辐射中的事情的发生。

※该产品,可根据要容纳的基站的尺寸,进行客制化生产。

Specifications
规格

Representative box size 1500(H) x 1100(W) x 800(D) mm
(excluding protrusions)
Shield attenuation 60dB or more (600MHz to 45GHz)
Standard connector SMA or 2.92mm 16 in total
Other Equipped with through-holes for cable entry
Equipped with 4 cooling fans

※Custom available. Please consult our sales department
定制可能。有需要的话,请联系我公司销售人员

Multipurpose medium shield box(WM1019-04227)
多功能中型屏蔽箱 (WM1019-04227)

It is a multipurpose medium size shield box with internal effective dimensions of 500 mm (W) x 500 mm (H) x 500 mm (D). It can be used to measure wireless communication terminals such as mobile terminals as well as various modules and repeaters.
It is equipped with a variety of interfaces inside the box, and in addition to the RF connector (2.92mm, SMA), DSUB9Pin, USB, LAN, and AC, it also has VGA and supports measurement of various devices. It is also equipped with a penetrating tube, so it is possible to directly pull in cables such as optical cables and high-speed USB.
The standard model has a frequency of 800MHz to 43.5GH and a shield attenuation of 60dB or more.

内部有效尺寸为500mm(W)x500mm(H)x500mm(D)的 多功能中型屏蔽箱。可应用于手机终端、各类电子模块 和中继设备等无线通信终端设备的测试中。
屏蔽箱内部配有多种连接方式,除配备RF接口 (2.92mm、SMA)、DSUB9Pin、USB、AC、LAN等连接方 式外,还配备了VGA,可实现对各类设备的测试。而且 还配有贯通管,可实现光缆和USB缆线等各种缆线的穿 引。
标准型号适用的频率范围为800MHz~43.5GHz,可确 保屏蔽衰减量在60dB以上。

Specifications
规格

External dimensions 600(H) x 600(W) x 600(D)
(excluding protrusions)
Internal effective dimension 500(H) x 500(W) x 500(D)
Internal table dimensions 400mm x 400mm
Penetration tube size Φ50mm x1
Shield attenuation 60dB or more (800MHz to 43.5GHz)
Standard connector SMA or 2.92 connector x10
2.92mm x9
USB3.0 x2 / USB2.0 x2 / DSUB9Pin x3
LAN x1 / VGA x1 / AC100V x1

※Custom available. Please consult our sales department
定制可能。有需要的话,请联系我公司销售人员

Shield box for evaluation of various small devices (WM1019-04219)
各类小型设备测评用屏蔽箱(WM1019-04219)

A compact shield box that enables testing of various terminal devices in a compact size has a flat resin table structure inside, and a single device can measure the radio wave environment of various devices such as mobile phones, game consoles and tablets. It can be realized.
The frequency is 800 MHz to 100GHz, and the amount of attenuation is 60dB or more .
Equipped with abundant interfaces inside the box, equipped with RF connector (2.92mm, SMA), USB, AC, CITA, and also equipped with a through tube, which pulls in multicore cables such as emulators of internal equipment. It is very useful in equipment development and verification.
Equipped with a small fan, internal airflow measures are taken into consideration.

可对各类终端设备进行小型化的试验,小型屏蔽箱内 为平坦的树脂平台构造,可用一台屏蔽线实现对从手机 到游戏机、平板电脑等各类设备电磁波测试环境的建立。
频率范围在800MHz~100GHz,可确保60dB以上的衰减量。
屏蔽箱每内部配有多种连接方式,如RF接口(2.92mm、SMA)、USB、AC、CITA等,同时也配备有贯通孔,用于如仿真器等内部设备的多芯缆线的穿引,经常被应用在设备开发和验证等方面。
作为内部空气流动的对策,搭载了小型冷却风扇。

Specifications
规格

External dimensions 250mm(H) x 410mm(W) x 592.5mm(D)
(excluding protrusions)
Internal effective dimension 150(H) x 300(W) x 300(D)
Penetration tube size Φ20mm x1
Shield attenuation 60dB or more (800MHz to 43.5GHz)
Standard connector SMA or 2.92 x8 (Group1)
SMA or 2.92 x4 (Group2)
USB x2 / CITA x2 / AC100V x1

※Custom available. Please consult our sales department
定制可能。有需要的话,请联系我公司销售人员

Hand-in-shield box for small device evaluation(WM1019-04207)
小型设备测评用手入式屏蔽箱(WM1019-04207)

The arm insertion part is a cloth-like metal with a soft shield property. It is not a hard cylinder like the image.

手臂插入部位为屏蔽性能较好的柔性布状金属。 不是想图片所示的那种坚硬的圆柱体。

A small shield box that enables testing of various terminal devices in a compact size and has a flat resin table structure inside, and supports various devices such as mobile phones, game consoles and tablets. It is possible to insert the arm and operate the equipment inside the box while securing the shield amount. It is equipped with a window so that you can grasp the situation inside the box. The frequency is 800MHz to 43.5GHz, and the amount of attenuation is 60dB or more.

Equipped with abundant interfaces inside the box, equipped with RF connector (2.92mm, SMA), USB, AC, CITA, and also equipped with a through tube, which pulls in multicore cables such as emulators of internal equipment. It is very useful in equipment development and verification.

Equipped with a small fan, internal airflow measures are taken into consideration.

可对各类终端设备进行小型化的试验,小型屏蔽箱内 为平坦的树脂平台构造,可适用于从手机到游戏机、平 板电脑等各类设备的电磁波测试。 可在确保屏蔽效果的前提下,将手臂插入屏蔽箱内对被测设备进行操作。同时还配备有用于掌握屏蔽箱内部情况的窗口。适用的频率范围为800MHz~43.5GHz,可确保屏蔽衰减量在60dB以上。

屏蔽箱每内部配有多种连接方式,如RF接口(2.92mm、SMA)、USB、AC、CITA等,同时也配备有贯通孔,用于如仿真器等内部设备的多芯缆线的穿引,经常被应用在设备开发和验证等方面。
作为内部空气流动的对策,搭载了小型冷却风扇。

Specifications
规格

External dimensions 341mm(H) x 505mm(W) x 584.5mm(D)
(excluding protrusions)
Internal effective dimension 200mm(H) x 400mm(W) x 400mm(D)
Penetration tube size Φ20mm x1
Shield attenuation 60dB or more (800MHz to 43.5GHz)
Standard connector SMA or 2.92 x8 (Group1)
SMA or 2.92 x4 (Group2)
USB x2 / LAN x1 / CITA x2 / AC100V x1

※Custom available. Please consult our sales department
定制可能。有需要的话,请联系我公司销售人员

Shield box for 5G device evaluation(FS-1905)
5G设备测试用屏蔽箱 (FS-1905)

This is a second-generation compact shield box that enables testing of 5G terminal equipment in a compact size. The box was downsized to the limit size by our small antenna coupler.
Various tests such as power, spurious, EVM, protocol, MIMO, beamforming, and handover can be supported. Supports frequencies from 24GHz to 43.5GHz. By combining with sub 6 GHz antenna coupler, it can cover 600MHz ~ 43.5GHz. The attenuation of the shield box has secured 60dB or more.

* The shield box size can be customized according to the size of the object to be measured.

Nine millimeter-wave antenna couplers (FA-529S, FA-543S) are installed as standard, and 0 degrees (horizontal), 45 degrees, 90 degrees while maintaining a certain distance in the zenith direction on both the left and right sides and the back of the mobile terminal. Is arranged with degrees. Easy switching between horizontal and vertical polarization Equipped with a mechanism that rotates at right angles.

Optional sub 6 GHz antenna couplers (FA-600, FA-600N) can be mounted on the mobile phone’s diagonal back and liquid crystal surfaces.

实现对5G终端设备测试袖珍版,第2代小型屏蔽箱。通过使用我司生产的小型天线耦合器,最大限度对屏蔽箱进 行了小型化。 适用于电力、杂散发射、EVM、通信协议、MIMO、波束成形和 信号切换等各类测试。 频率带宽适用于24GHz~100GHz。通过和sub 6GHz用天线耦 合器的组合,频率可覆盖600MHz~75GHz。屏蔽箱的衰减量 可确保在60dB(600MHz-100GHz)以上。

※可以根据被测物的尺寸,对屏蔽箱进行客制化。

毫米波天线耦合器,按标准是需要配备9个,分别在手机终端 设备的左右两面,背面和顶部方向保持一定的距离,在0度(水 平)、45度和90度的位置上予以配置。为了能够在水平偏波、 垂直偏波进行自由切换,配备了直角旋转装置。

另外还可选择sub 6GHz用天线耦合器(FA-600, FA-600N), 在手机终端装置的斜背面和液晶屏屏幕面方向上安装2个。

Specifications
规格

Box size 226(H) x 350(W) x 395(D)
(excluding protrusions)
Assumed measurement size 160(H) x 80(W)mm
Shield attenuation 60dB or more (600MHz to 45GHz)
Standard connector SMA x2
2.92mm x9
USB3.0 x2
One USB can be replaced with Ethernet

※Custom available. Please consult our sales department
定制可能。有需要的话,请联系我公司销售人员

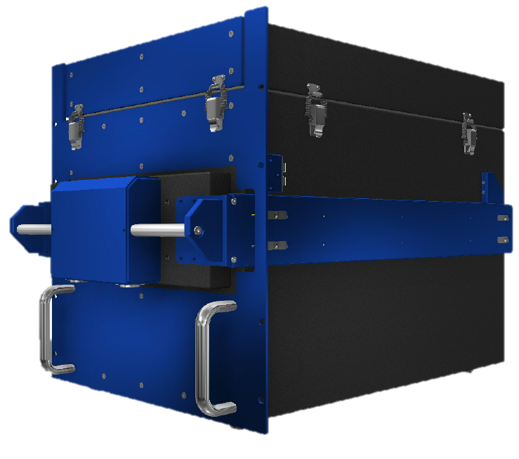

Shield box for 5G device evaluation(FA-1801)
5G设备测试用屏蔽箱 (FA-1801)

This is a small size shield box equipped with a high-performance antenna coupler that can measure closely to the measurement object. Various evaluations such as power, EVM, beamforming, and MIMO can be realized on the desk.

* The shield box size varies depending on the size of the measured object.

Key to enable 5G device evaluation at desktop size Part antenna coupler . This time, we have developed a new ultra-small antenna coupler specifically for the shield box. Supports frequencies from 24GHz to 43.5GHz. By combining with sub 6 GHz antenna coupler, it can cover 600MHz – 43.5GHz.

The attenuation of the shield box has secured 60dB or more.

An antenna coupler is placed around the terminal so that the distance from the terminal antenna is equal. In addition, it has a structure that allows antenna couplers to be freely arranged to support horizontal and vertical polarization.

Available measurement items include smartphone type, module type, base station type, and antenna coupler group units corresponding to measurement components.

这是一款可接近被测物进行测量,并配备了高性能天线耦合器的 小型※测试专用屏蔽箱 。可以实现在桌子上大小的地方对电力、 EVM、波束成形和MIMO(多进多出)等的测试。

※屏蔽箱的尺寸可以根据被测物的大小来进行变动。

使5G设备测试能在桌子上大小的地方进行的关键部件天线耦合器, 是我公司开发的屏蔽箱专用最新的超小型天线耦合器。 适用的频率带宽为24GHz~43.5GHz。通过和SUB-6GHz专业天线耦 合器的组合,可覆盖频率带宽600MHz~43.5GHz。

屏蔽箱的衰减量可以确保在60dB以上。

天线耦合器配置在终端设备周围,以使终端设备天线 的距离相等。另外,它具有允许自由配置天线耦合器 以支持水平偏波和垂直偏波。

还研发了天线耦合器群装置,可对智能手机类、模块 类、基站类和元器件类测量物进行测试。

Specifications
规格

Box size 484(H) x 482(W) x 600(D) mm
(excluding protrusions)
19-inch (EIA) rack size
Assumed measurement size 148(H) x 74(W) mm
Shield attenuation 60dB or more (600MHz to 45GHz)
Standard connector SMA or 2.92mm 42 in total
USB3.0 x4
One USB can be replaced with Ethernet

※Custom available. Please consult our sales department
定制可能。有需要的话,请联系我公司销售人员
