28 GHz band compact frequency converter FSC-2824

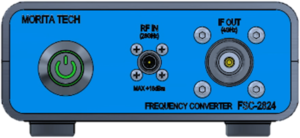

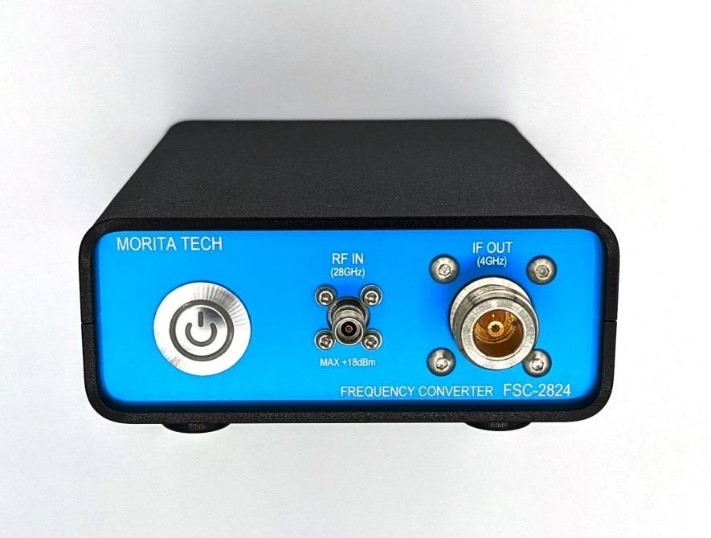

The compact frequency converter FSC 2824
provides power measurement in the 5G 28 GHz
band with a Sub6GHz band spanner.
・Down convert 28 GHz band to 3.8 GHz band
・USB bus power operation
・Built in LO signal source
Specifications
| Frequency | 26GHz to 30GHz |
|---|---|
| Loacal oscillation frequency | 24.125GHz |
| Maxinmum input power | +18dBm(CW) |
| Convesion Loss | 15dB(26GHz)、19dB(30GHz) typ. |
| Connector | RF INPUT: 2.92-J ／ IF OUTPUT: N-J |
| Size | 40(H) x 100(W) x 140(D) mm |
| Power-supply voitage | 5V(micro-USB) |
Simple frequency converter for confirmation（FSC-2824、FSC-3924、FSC-6024）
This is a frequency converter for simpleobservation mainly for the purpose of confirmingthat radio waves are emitted from millimeter wavebase stations in the field. The power supply ofthis product is designed to be supplied via USB,and can be operated with commercially availablemobile batteries, etc. Two types of USB terminalsare available: micro USB model and Type C model.
Specifications
FSC-2824
| Frequency | 26GHz to 30GHz |
|---|---|
| Loacal oscillation frequency | 24.125GHz |
| Maxinmum input power | +18dBm(CW) |
| Convesion Loss | 15dB(26GHz)、19dB(30GHz) typ. |
| Connector | RF INPUT: 2.92-J ／ IF OUTPUT: N-J |
| Size | 40(H) x 100(W) x 140(D) mm ※excluding protrusions |
| Power-supply voitage | 5V(micro-USB) |
FSC-3924
| Frequency | 38GHz to 40GHz |
|---|---|
| Loacal oscillation frequency | 36GHz |
| Maxinmum input power | +10dBm(CW) |
| Convesion Loss | -14dB (-10dB ～ -20dB) |
| Connector | RF INPUT: 2.92mm-J ／ IF OUTPUT: N-J |
| Size | 40(H) x 100(W) x 140(D) mm ※excluding protrusions |
| Power-supply voitage | DC5V(micro-USB or USB-TypeC) |
※Use and appearance are subject tochange without notice.
FSC-6024
| Frequency | 60GHz to 62GHz |
|---|---|
| Loacal oscillation frequency | 58GHz |
| Maxinmum input power | +3dBm(CW) |
| Convesion Loss | -16dB (-12dB ～ -22dB) |
| Connector | RF INPUT: 1.85mm-J ／ IF OUTPUT: N-J |
| Size | 40(H) x 100(W) x 140(D) mm ※excluding protrusions |
| Power-supply voitage | DC5V(micro-USB or USB-TypeC) |
※Use and appearance are subject tochange without notice.
asynchronous bidirectional frequency converter
（FSV-2810、FSV-4310、FSV-5810）
This frequency converter supports RF bands of 28 GHz,40 GHz, and 58 GHz, and can perform bidirectionalfrequency conversion asynchronously to the IF band of10 GHz. Built in local signals with ±10ppb accuracy
enable immediate frequency conversion. In addition tothe built in OCXO, the external 100 MHz referencesignal can also be input. It is also possible to directlyinput high precision local signals. You can also changethe local signal to the desired frequency beforeproducing it.
Specifications
| RF frequency | 24.5GHz to 29.5GHz |
|---|---|
| IF frequency | 5GHz to 10GHz |
| LO frequency | 19.5GHz |
| RF input Max power | ±8dBm P1 (CW) |
| IF Max Power | ±8dBm P1 (CW) |
| Conversion Loss | -16dB(typ.) |
| Frequency deviation | ±10ppb(Internal reference mode) |
| RF Connector | 2.92mm |
| IF Connector | SMA-J |
| INPUT Connector | BNC-J 100MHz External reference SMA-J External oscillation signal |
| External reference Frequency |
100MHz 0dBm |
| Power-supply Frequency |
AC100V – AC240V 50/60Hz 2A |
| Size | 100(H) × 320(W) × 230(D) mm (Not including protrusions and pedestals) |

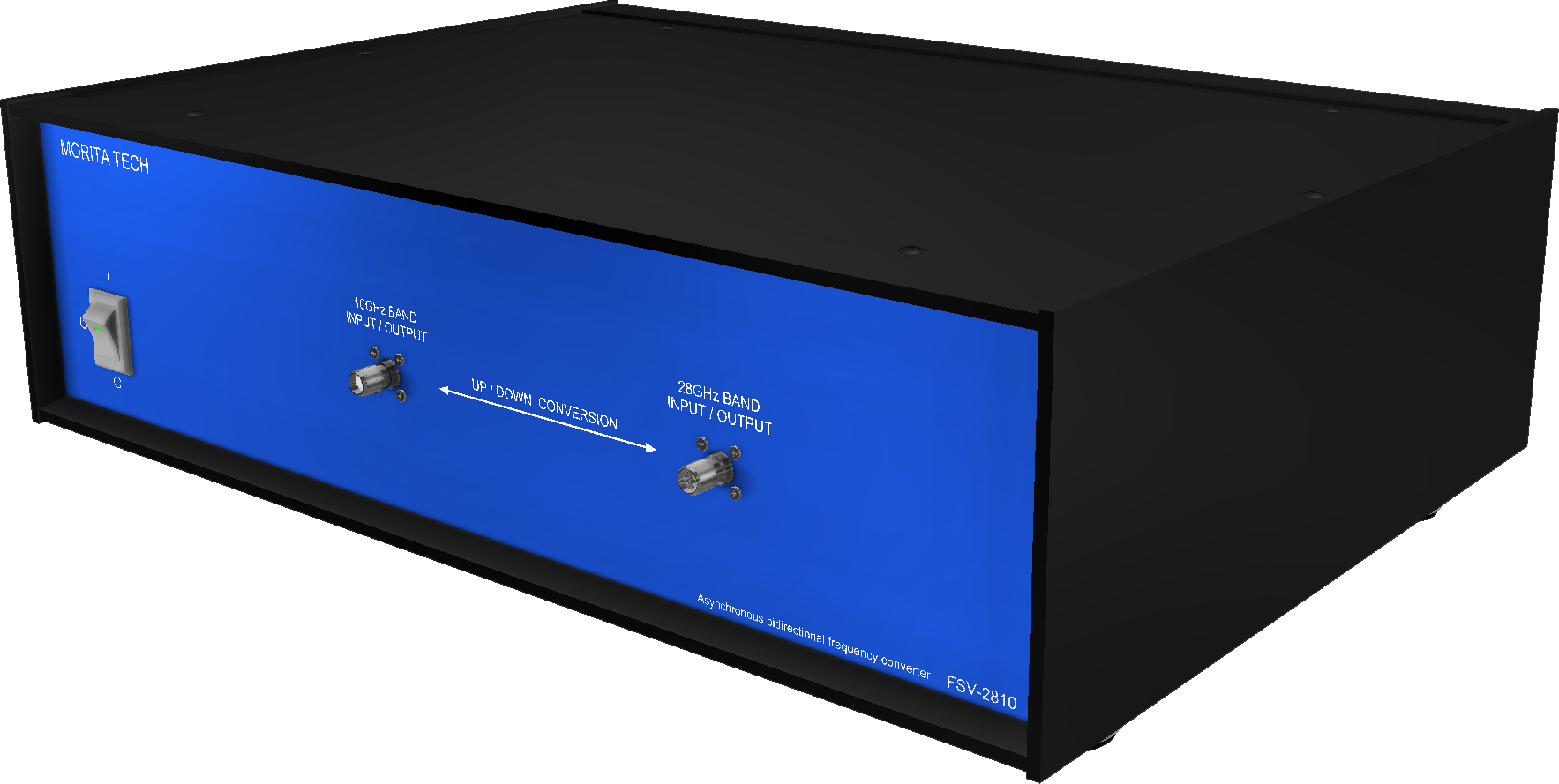

FSV-2810
Specifications
| RF frequency | 38.5GHz to 43.5GHz |
|---|---|
| IF frequency | 5GHz to 10GHz |
| LO frequency | 33.5GHz |
| RF input Max power | ±8dBm P1 (CW) |
| IF Max Power | ±8dBm P1 (CW) |
| Conversion Loss | -16dB(typ.) |
| Frequency deviation | ±10ppb(Internal reference mode) |
| RF Connector | 2.92mm |
| IF Connector | SMA-J |
| INPUT Connector | BNC-J 100MHz External reference SMA-J External oscillation signal |
| External reference Frequency |
100MHz 0dBm |
| Power-supply Frequency |
AC100V – AC240V 50/60Hz 2A |
| Size | 100(H) × 320(W) × 230(D) mm (Not including protrusions and pedestals) |

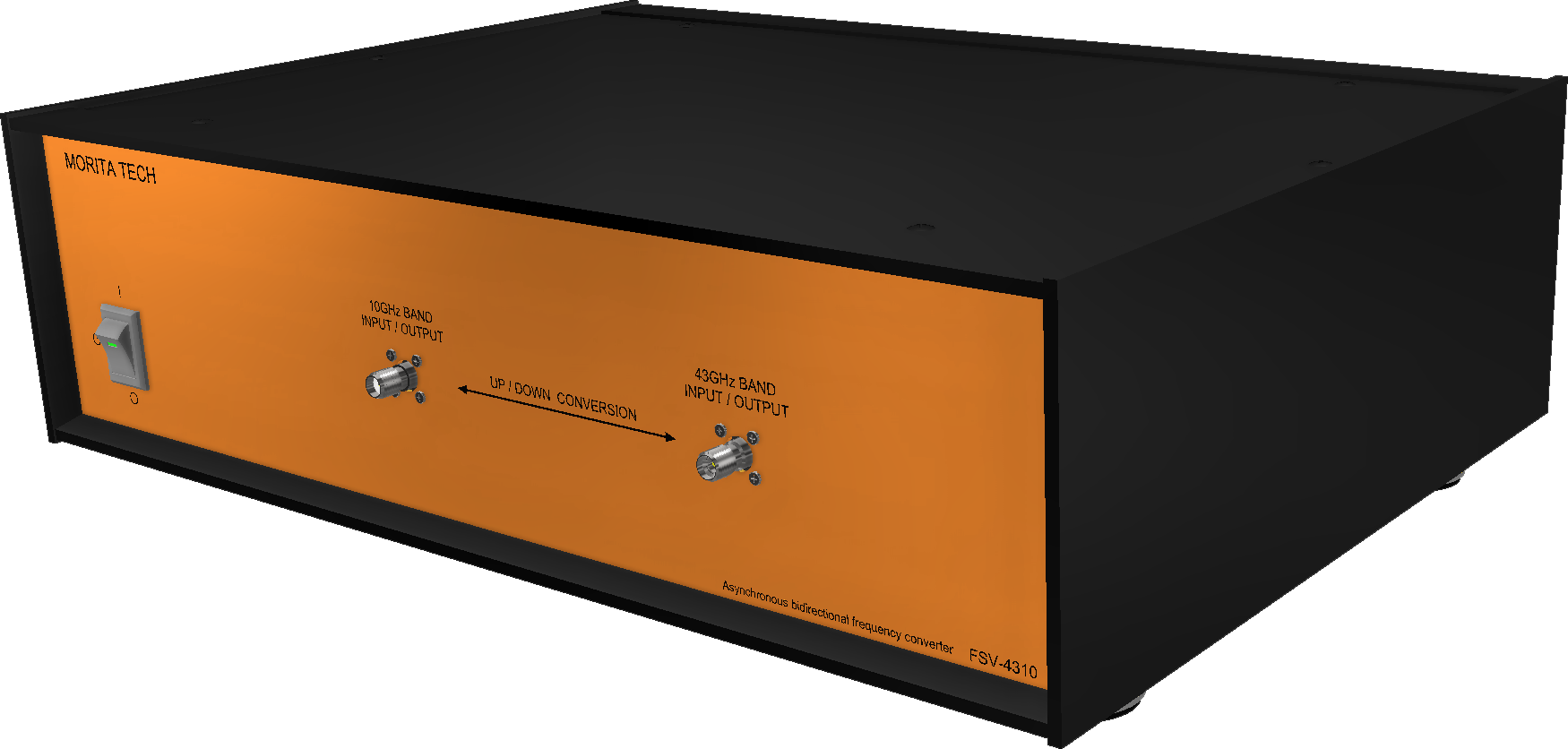

FSV-4310
