WM7000 series for A4 to A3 size item measurement
用于A4至A3尺寸物体测量WM7000系列




The measurement of electromagnetic field and the visualization of electromagnetic should be able to measure the items from the inside of the LSI to the big size item such as whole vehicle. We can provide ideal electromagnetic visualization systems to meet all needs. By combining the near magnetic field probe developed in-house with the compact 3-axis sensor, Morita Tech can provide the electromagnetic noise proposals adapting to various environments for LSI detection, print circle board measurement and whole vehicle measurement.

If you want to know more about the products, please contact us at any time.

对电磁场以及电磁波可视化测试的要求是能满足对从LSI内部精细部件到像整车那样大小的设备的测量。我公司准备了能满足各类要求的扫描仪。通过与我公司自行研制的近磁场界探棒和小型3轴传感器的组合使用,我公司可提供诸如LSI内部测量用、电路板测量用和车辆测量用等适应各种测量环境的电磁干扰测定方案。

想要相关产品详细说明的顾客,请与我公司联系。

WM7400( up to A4 size)
WM7400(最大可测尺寸A4)

A 6GHz wild band high-performance EMC noise scanner that can identify the place where omnidirectional noise is emitted in a scanning area up to A4 size. The WM7400 can operate in several scanning modes, so it is able to scan items whatever the shapes they have. The scanning range of up to size A4 can be measured. We prepared several scanning modes, such as image setting mode for print board, jig setting mode for small components, point setting mode for cable or objects which out of the ordinary shape. The acquired noise map can be overlapped on the photograph of the target objects.

Frequency band:150KHz~3GHz/150KHz~8GHz

※The scanner can be custom made from design to manufacture, no matter the size of the target objects is smaller than scanning area or with a big size.

※ The shape might be changed for refine without notice, please note.

产品为一款可在最大A4的扫描范围内对6GHz以下的全方向磁束辐射位置进行锁定的高性能EMC电磁干扰扫描仪。WM7400拥有多种测定模式,不限定测量物体形状。可测量的最大尺寸为A4大小物体。该设备具有多种设定模式用于不同物体的测定,如电路板可用画像设定模式测定,精密部件可用夹具设定模式测定,电缆及不规则物体可用点设定模式进行测定等。通过测定获取的干扰图可与被测物体的照片进行叠加处理。

频率范围:150KHz~3 GHz/150KHz~8 GHz

※扫描器从设计到制造都可以定制,无论目标物体的尺寸是小于扫描面积还是大尺寸。

※因产品改良等原因,在无事先通知的情况,产品形状有可能发生改变.

Catalog Download
产品目录下载

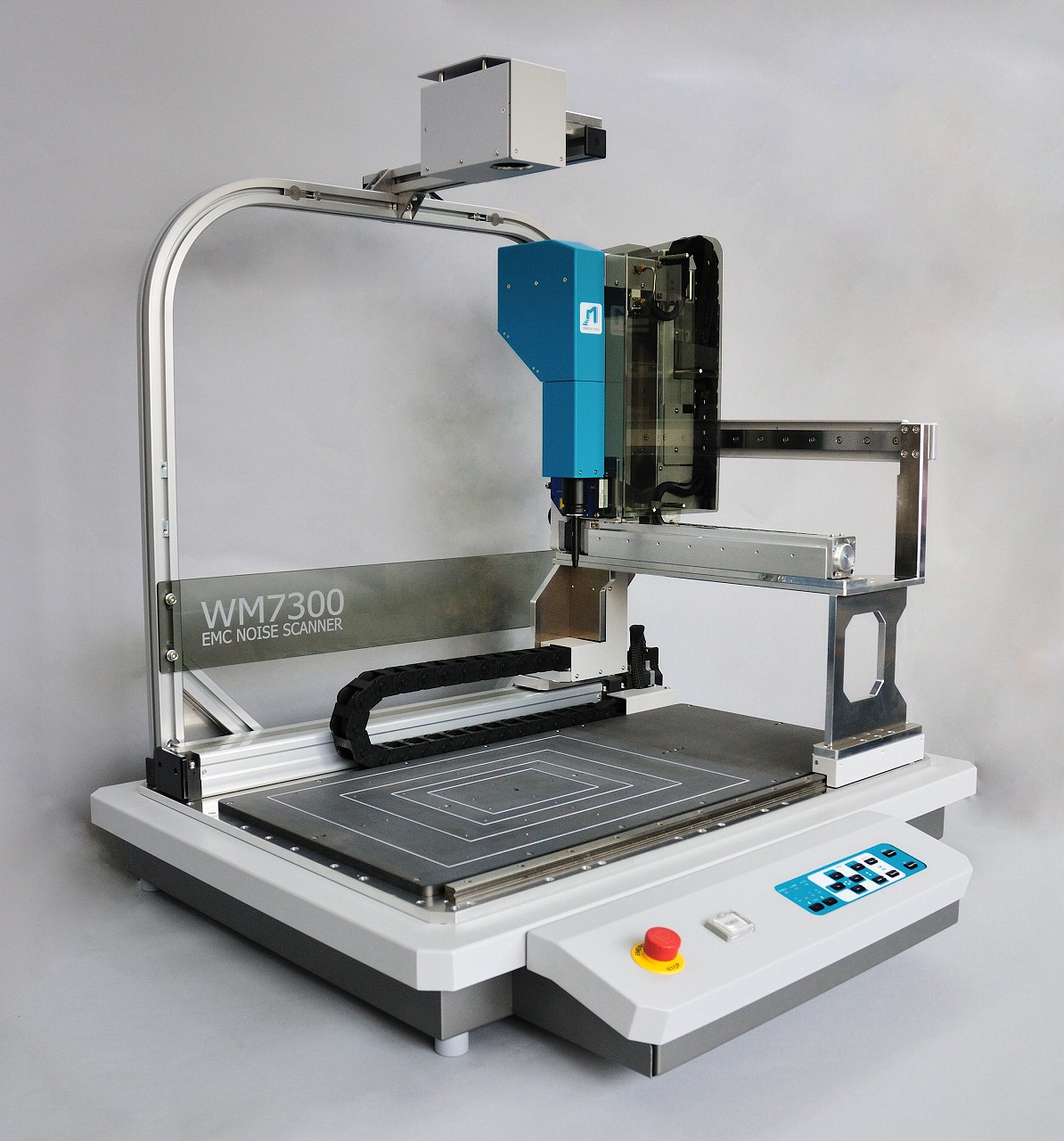

WM7300( up to A3 size)
WM7300(最大可测尺寸A3)

A 6GHz wild band high-performance EMC noise scanner that can identify the place where omnidirectional noise is emitted in a scanning area up to A4 size. The long cables and big size print boards that can’t be measured by WM7400 can be measured by the WM7300.

Frequency band:150KHz~3GHz/150KHz~8GHz

※The scanner can be custom made from design to manufacture, no matter the size of the target objects is smaller than scanning area or with a big size.

※The shape might be changed for refine without notice, please note.

※CISPR22 Patent Pending

本产品为一款可在最大A4的扫描范围内对6GHz以下的全方向磁束辐射位置进行锁定的高性能EMC电磁干扰扫描仪。而且较长的电缆及较大的电路板等不能使用WM7400进行测定的物体可使用WM7300来进行测定。

频率范围:150KHz~3 GHz/150KHz~8 GHz

※扫描器从设计到制造都可以定制,无论目标物体的尺寸是小于扫描面积还是大尺寸。

※因产品改良等原因,在无事先通知的情况,产品形状有可能发生改变.

※ CISPR22对应 专利申请中

Catalog Download
产品目录下载

Product Advantages
产品的优点

1、In-house developed near magnetic field probe
1、独立研发的近磁场探棒

The near magnetic field probe developed in-house has a wide variety of coil shapes, sizes, V / H, etc. Efficient and accurate measurement can be performed by using it properly according to the measurement content. When you purchase the WM7400 or WM7300, one near magnetic field probe is included as standard. Additional sales will be made upon request.

自行研制的近磁场探棒有多种多样的线圈形状、尺寸和V/H。根据被测物体的不用选择不同探棒进行测试,实现测试的高效性和准确性。在购买WW7400或WM7300设备时,会附赠1只探棒。若有其他需求,请另行购买。

Catalog Download
产品目录下载

2. Near magnetic field probe for side channel attack analysis
2、 用于侧信道攻击分析的近场探棒

  • Characteristics optimized for side-channel attack evaluation
  • High output that enables data analysis with an oscilloscope
  • Low price, sold separately
  • Prepare a set of high gain amplifier, bias power supply, and RF cable (sold separately)
  • Installed on the WM7400 or WM7300 can realize a position control of 0.1 mm (X-Y-Z)(the WM7400-opt. or WM7300-opt. Magnetic field scanner adapter is needed)
  • 最适于侧信道攻击分析的特性
  • 可用示波器进行分析的高输出功率
  • 低价格、单独售卖
  • 准备有高增益AMP、BIAS电源、RF缆线的组合(另行售卖)
  • 安装在WM7400或WM7300设备上,可实现精度为0.1mm (X-Y-Z)的位置控制 ( WM7400-opt.或WM7300-opt. 地磁场扫描仪都需要配备专用适配器。)

3. Measuring shape by a laser rangefinder
3、使用激光测距仪进行形状测定

Using the laser rangefinder sensor, the device can scan the shape of the object without physical contact . It can achieve super -sensitive , accurate noise measurement through constant -distance scanning of objects whose surfaces are different in height.

通过激光测距仪传感器,不用接触被测物体即可对被测物体的形状进行 测定。即使是对高度不同的物体的表面,也可实现等距且高灵敏度的正确的干扰测试试验。

4. Compatible with spectrum analyzers of each company
4、可兼容各厂家的频谱仪

There is no spectrum analyzer manufacturer is designation. It is also compatible with handheld type spectrum analyzer.

无任何频谱仪厂家被指定,手持式频谱仪也可兼容。

Spectrum analyzers are confirmed ( May 2012)
已确认频谱仪(2012年5月)
ROHDE&SCHWARZ FSC, FSL, FSV, FSVR, ESU, ETL, ZVL
ANRITSU MS2651A, MS2661C, MS2690A, MS2691A, MS2692A, MS2830A, MS6501A
Agilent Technologies E4401B, E4402B, E4403B, E4404B, E4405B, E4407B, E4408B, E4411B, E7402A, E7404A, N9000A, N9010A, N9020A
ADVANTEST R3131, R3161, U3741, U3751

5. Dual screen & Dual cursor
5、双屏双光标

The photo of the object and the measurement result are displayed in the left and right display areas at the same time. There are cursors in the left and right display areas that point to the same point, making it very easy to identify the noise source. In addition, the measurement data can be displayed in various formats such as 2D, contour lines and 3D, and can be compared with the previous data.

物体照片和测量结果同时显示在左右显示区。在左右显示区域中有指向同一点的光标,这使得识别干扰源非常容易。此外,测量数据可以以二维、等高线和三维等多种格式显示,并可以与以前的数据进行比较。

6. The exclusive shield box
6、专用屏蔽箱

A shield box is required for accurate noise measurement. You can purchase an optional standard shield box suitable for each model.

为了能够准确的测试电磁干扰,专用屏蔽箱是必要的。适用于各型号的标准屏蔽箱可自行选购。

  • Shield characteristic:800MHz-6GHz(above 60dB)
  • 840(W)×1545(H)×940(D)mm (a shield box designed exclusively for WM7400.)
  • 屏蔽特性:800MHz-6GHz(above 60dB)
  • 840(W)×1545(H)×940(D)mm (WM7400专用屏蔽箱)
