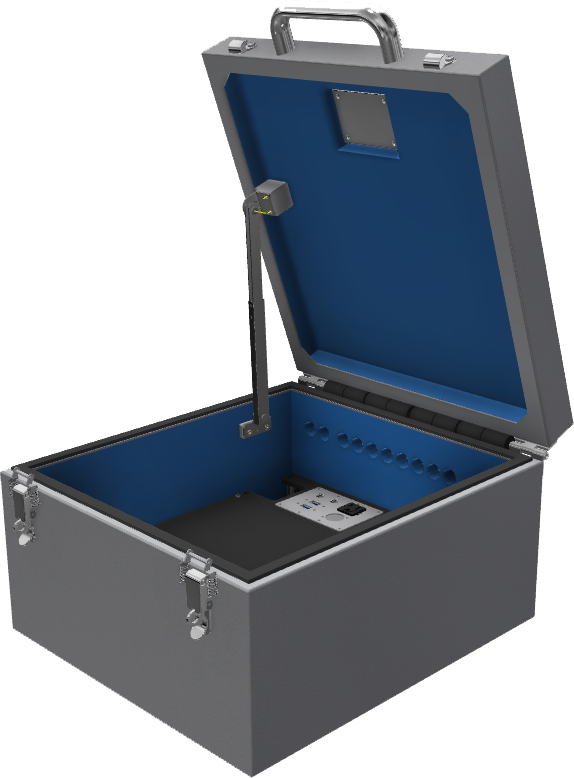

WM1019-04219
A compact shield box that enables testing of various terminal devices in a compact size. With a flat resin table structure inside, it is possible to realize a radio wave measurement environment for various devices such as mobile phones, game consoles and tablets.The supported frequencies have also been expanded to ensure attenuation of 600MHz to 100GHz and 60dB or more. Equipped with abundant interfaces for coupling with the inside of the box, equipped with RF connectors (1.00mm, 1.85mm, 2.92mm, SMA), USB, AC, CTIA, and also equipped with a through tube, for internal equipment It is useful in device development and verification situations, such as pulling in a multi-core cable such as an emulator.It is equipped with a small fan, and internal airflow measures are taken into consideration.
Specifications
External dimensions | 250(H) × 410(W) × 592.5(D)mm (excluding protrusions) |
Internal effective dimension | 150(H) × 300(W) × 300(D)mm |
Through tube size | Φ20mm ×1 |
Shield attenuation | 60dB以上(800MHz~43.5GHz ) |
Standard connector | SMA or 2.92mm or 1.85mm or 1.00mm ×8 SMA or 2.92mm or 1.85mm or 1.00mm ×4 USB3.0 ×2 / CITA ×2 / AC100V ×1 |
Please specify OPTION according to the shield
compatible frequency.
Opt 01 : 600MHz~43.5GHz
Opt 02 : 600MHz~67GHz
Opt 03 : 600MHz~100GHz

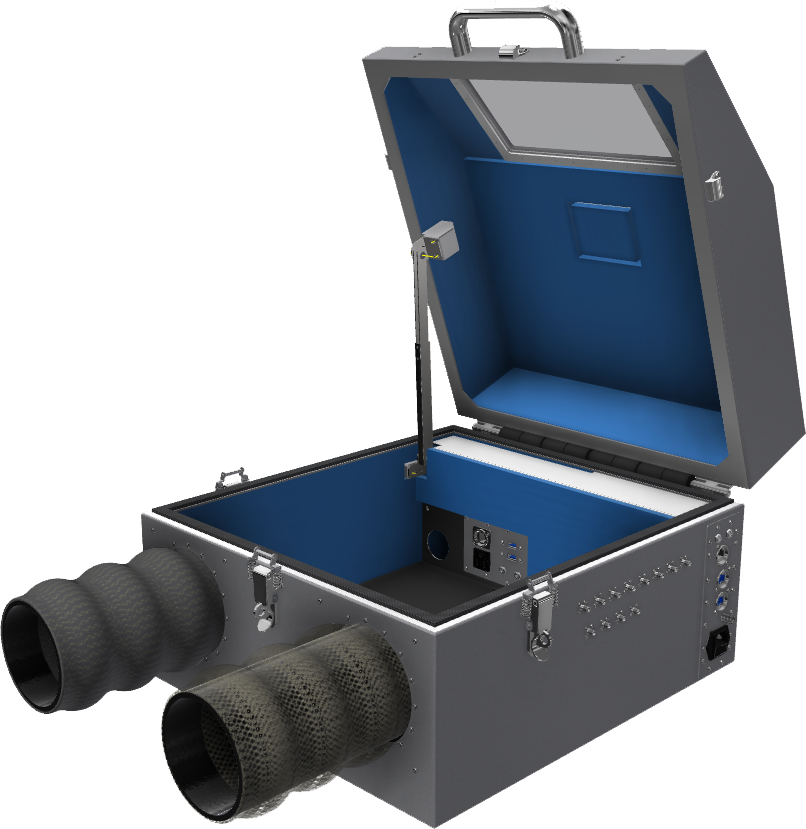

WM1019-04207H
It has a small shield box and a flat resin table structure that enables testing of various terminal devices in a compact size, and is compatible with various devices such as mobile phones, game consoles, and tablets. It is possible to insert the arm and operate the equipment inside the box while securing the amount of shield. A window is installed so that the situation inside the box can be grasped. The attenuation of frequency 800MHz-43.5GHz, 60dB or more is secured. Equipped with abundant interfaces for coupling with the inside of the box, equipped with RF connector (2.92 mm, SMA), USB, AC, CTIA, equipped with a through tube, multi-core cable such as an emulator for internal equipment It is useful in equipment development and verification scenes. It is equipped with a small fan, and internal airflow measures are taken into consideration.
Specifications
External dimensions | 341(H) × 505(W) × 584.5(D)mm (excluding protrusions) |
Internal effective dimension | 200(H) × 400(W) × 400(D)mm |
Through tube size | Φ20mm ×1 |
Shield attenuation | 60dB以上(800MHz~100GHz ) |
Standard connector | SMA or 2.92mm or 1.85mm or 1.00mm ×8 SMA or 2.92mm or 1.85mm or 1.00mm ×4 USB3.0 ×2 / LAN ×1 / CITA ×2 / AC100V ×1 |
Please specify OPTION according to the shield compatible frequency.
Opt 01 : 600MHz~43.5GHz
Opt 02 : 600MHz~67GHz
Opt 03 : 600MHz~100GHz

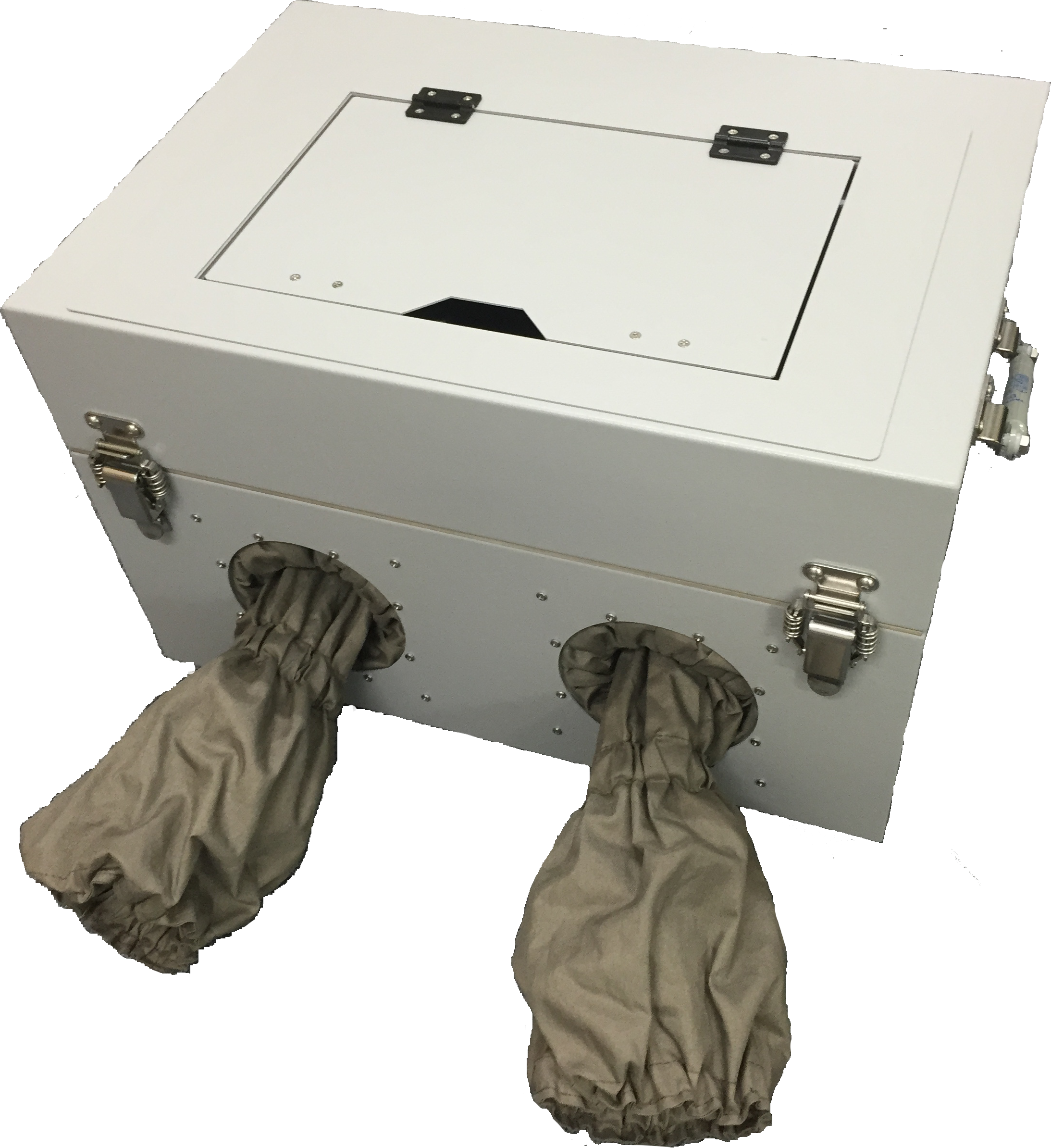

WM1019-04178H
Specifications
External dimensions | 320(H) × 510(W) × 365(D)mm (excluding protrusions) |
Internal effective dimension | 170(H) × 450(W) × 300(D)mm (開口部 W425 × D275) (excluding protrusions) |
Through tube size | Φ20mm ×1 |
Shield attenuation | 80dB以上(600MHz~6GHz全帯域 ) |
Standard connector | SMA ×1 USB2.0 ×1 / AC100V ×1 |

WM1019-04246H
This is a hand-in-shield box that has been redesigned based on ergonomics to improve operability when inserting arms into the shield box. The dead space at the arm insertion point has been improved, allowing for space-saving when multiple boxes are placed side by side with neighboring operators. The interior is structured with a flat resin table, compatible with a variety of devices including mobile phones, gaming consoles, and tablets. It is possible to operate the equipment inside the box while maintaining the required shielding by inserting the arm. A window is provided to allow visibility of the conditions inside the box. It ensures a frequency range of 600MHz to 100GHz with an attenuation of more than 60dB. The device is equipped with a rich variety of interfaces for connection with internal equipment, including RF connectors (1mm, 1.85mm, 2.92mm, SMA), USB, LAN, CTIA, and AC. It also features conduit for bringing in multi-core cables for emulators and other equipment development and verification scenarios. A small fan is included, taking into account the internal airflow management.
Specifications
External dimensions/td> | 341(H) × 505(W) × 584.5(D) |
Assumed standard size | 260(H) × 414(W) × 300(D) |
Standard response frequency | 800MHz to 6GHz |
Shield Attenuation | 60dB or more |
Standard connector | SMA ×8 / USB3.0 ×2 LAN ×1 / CTIA ×2 |
Exhaust fan air volume | 9.5CFM |
Exhaust fan power | AC100V 50/60Hz 5W |
Box socket | 3A Max |
band option | Option01 600MHz lowest frequency Option02 29.5GHz Highest supported frequency Option03 43.5GHz Highest supported frequency Option04 70GHz Highest supported frequency Option05 100GHz Highest supported frequency |
